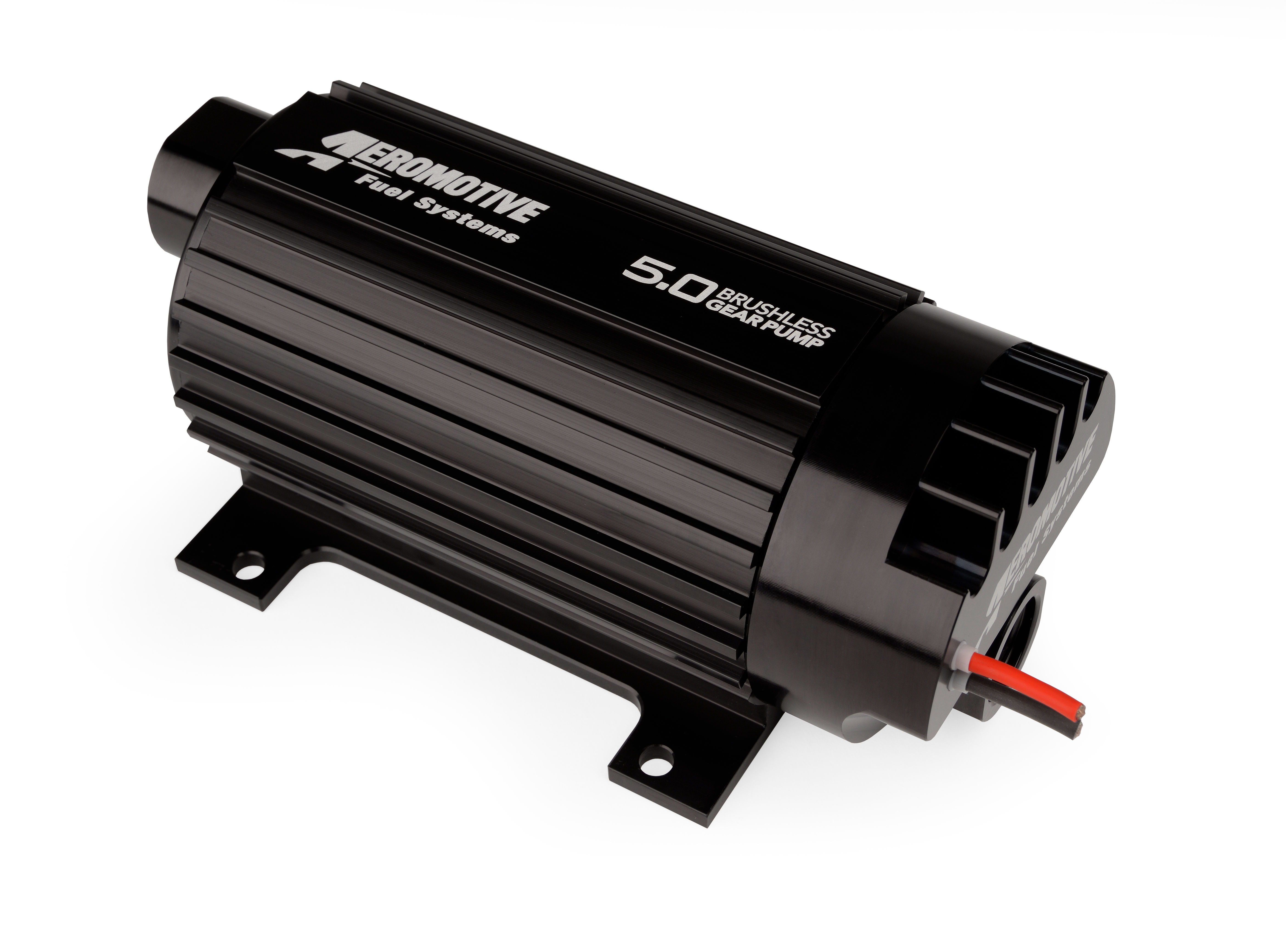

P/N 11186 5.0 Brushless Spur Gear Pump –  Signature body with mounting feet. Ground Shaking Performance – Advanced Technology

• Supports

  • Fuel injected engines: GAS up to 3400 FWHP – naturally aspirated up to 2600 FWHP – forced air induction

  • Carbureted engines: GAS Up to 3600 FWHP – naturally aspirated Up to 2700 FWHP – forced air induction

  • Fuel injected engines: E85 up to 2380 FWHP – naturally aspirated up to 1820 FWHP – forced air induction

  • Carbureted engines: E85 Up to 2520 FWHP – naturally aspirated Up to 1890 FWHP – forced air induction

  • Fuel injected engines: METHANOL up to 1,190 FWHP – naturally aspirated up to 910 FWHP – forced air induction

  • Carbureted engines: METHANOL Up to 1,260 FWHP – naturally aspirated Up to 945 FWHP – forced air induction

• Lighter than the traditional external mount pumps.

• Reduced current draw at higher, EFI pressures.

• Extended service life in methanol and ethanol.

• New integral spur-gear pumping mechanism.

• 90-PSI continuous operating pressure and up to 150-PSI peak pressure, base plus boost.

• This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.

• Integral, external brushless controller for clean installation, cooler fuel and enhanced reliability.

• ORB-12 inlet and ORB-10 outlet ports.

• Requires straight 12-VDC to 16-VDC power supply.

• Not compatible with pulse modulated systems or fuel pump speed controllers.

EFI Rated flow of 1,700 lbs./hr. @ 40 psi, 13.5 volts Carb Rated Flow of 1,850 lbs./hr. @ 9 psi, 13.5 volts
